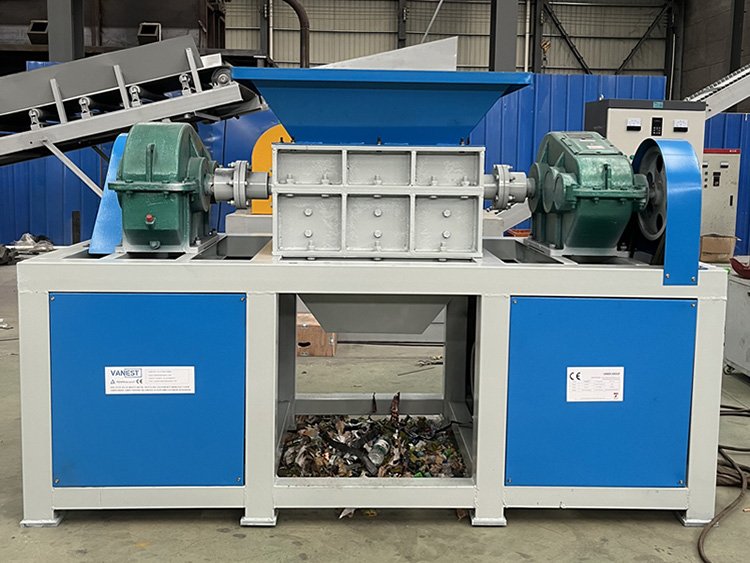

400 Type double shaft shredder

1.Structure and working principle

This 400-type double-shaft shredder is a highly efficient shredding device, specially designed for the rough shredding of various waste wires and cables, automobile dismantling wires, and capillary wires. It uses two independent reducers to drive two shredding knife shafts respectively, and through the "scissor-like" shearing effect between the knife shafts, it can achieve strong shredding of the material. The double-shaft shredder has the advantages of low speed, high torque, and low noise. It is particularly suitable for processing and recycling waste wires and can efficiently complete the rough shredding of materials.

2. Workflow

Step 1: Material introduction

The material to be processed is fed into the equipment through the feed port of the shredder. Due to the wide variety and different sizes of recycled materials, the feed port and blade size of the shredder can be customized according to actual needs to ensure that it meets the processing requirements of different materials.

Step 2: Cutting and tearing process

There are usually two sets of rotating cutting blades or gears inside the shredder. These blades or gears exert strong shearing and tearing forces on the incoming material by interlocking with each other, thus breaking the material into smaller pieces.

Step 3: Waste discharge: The processed waste is discharged through the shredder outlet. Depending on the type and purpose of the processed material, the waste may be collected in a container or directly conveyed to other equipment through a conveyor for further processing.

3.Applicable scenarios and technical parameters
