Aluminum plastic recycling separation production line

1. Main functions and purposes

Aluminum Plastic Separation Machine is used for recovery of waste aluminum-plastic materials, can put the aluminum and plastic separation, aluminium plastic separator adopts crushing, grinding, separating, dust removing technology process to achieve completely & simultaneously separating recycling aluminum metal and plastic powder. And the recycled aluminum powder can be sold directly to the aluminum reclamation plants and fireworks and firecrackers plants, the PVC powder also can be sold in the market as the re-process materials.

2. Raw materials and final products

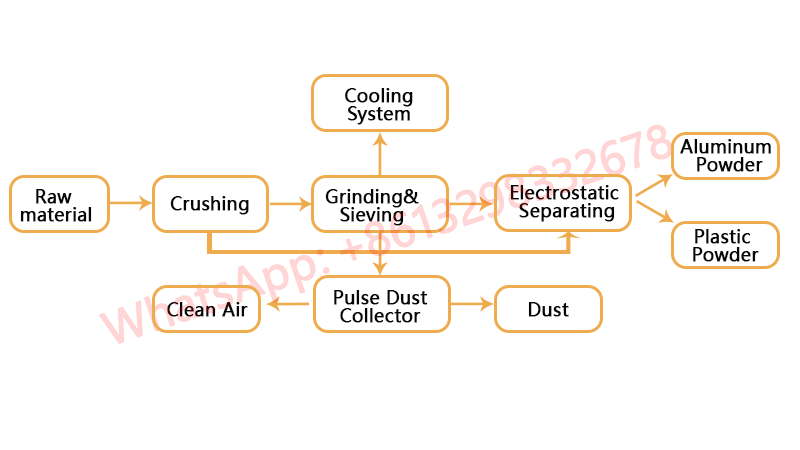

3.Process Description

The aluminum and plastic raw materials are first crushed into 10mm pieces by a knife crusher, then ground into aluminum and plastic fine powder by a water-cooled turbine grinder, and then sorted by a rotary vibrating screen. The large particles return to the grinder and the fine powder enters the electrostatic separator, and finally the aluminum and plastic are completely separated.

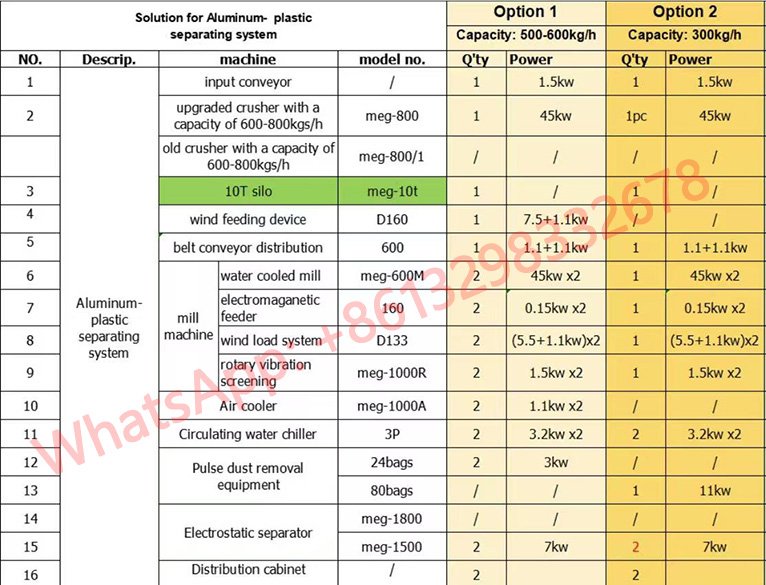

Parameter Table

5.Main characteristics

1) All the process is physical separation, without heating, burning, water and chemical, so it is environmental protection and no pollution.

2)The process has low cost, high efficiency and separation rate can be reached 99.8%.

3)The production line is automatic, saving labor; just one or two person is enough for operating machine.

4)This production line is used widely.

5)Production line installation is convenient, has a variety of assembly method, can adapt to different venues.

6. Advantages and environmental benefits

Aluminium possesses high intrinsic value due to its recyclability and energy efficiency. By separating and reprocessing aluminium foil from blister packs, Pharmacycle minimises the need for primary aluminium production, conserving resources and reducing environmental impacts.
