Aluminum-plastic separation

Aluminum-plastic plate separation equipment detailed introduction:

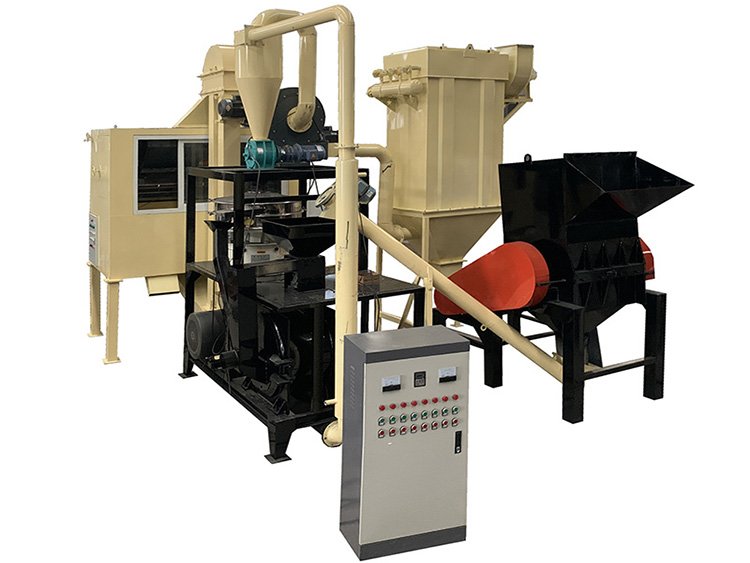

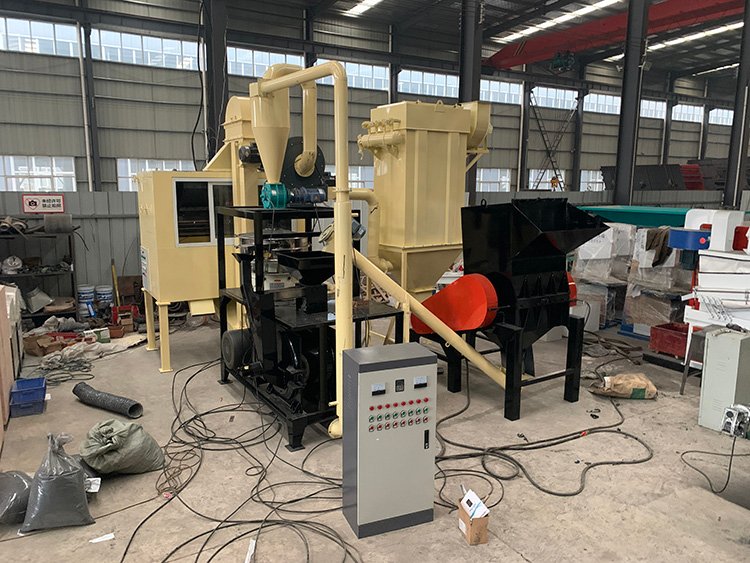

Environmentally friendly aluminum-plastic plate separation equipment is a separation and sorting equipment specially designed for the removal of old aluminum plates, aluminum-plastic waste composite plates, the elimination of aluminum-plastic decorative plates and waste tablet plates, the replacement of aluminum-plastic edge strips produced during the production of waste tablet plates, and the replacement of a large number of aluminum-plastic composite plates eliminated in society, to reclassify and restore metal aluminum and plastic. The equipment has a high degree of automation, is easy to operate, has high stability, and saves labor. The aluminum-plastic plate separation equipment consists of a feeding conveyor, a crusher, a water-cooled mill, a high-voltage electrostatic separator, and a cleaning equipment.

Scope of application:

Scrapped aluminum-plastic film, aluminum-plastic tube, aluminum-plastic plate, tablet plate decomposition and separation, separation of various types, conductor materials and non-conductor materials, metal and non-metal separation, mainly used for waste printed circuit boards (copper and PCB), various medicine plates, aluminum-plastic plates, food packaging bags, milk bags, toothpaste skins, Wahaha bottle caps, aluminum-plastic tubes, aluminum-platinum paper, metal beneficiation, etc., the separation effect is very obvious. Since cities have to eliminate a large amount of waste every year, the use of aluminum-plastic separation equipment can turn these wastes into treasures without secondary pollution. It uses an environmentally friendly and energy-saving separation method to produce, and the investment recovery effect is significant.

There are PVC materials in aluminum-plastic composite materials, plus a unique two to four-cavity structure, and the inner and outer layers are coated with aluminum alloy, which has a heat preservation effect. The heating separation method is to use this feature to deal with it, but at the same time, harmful substances such as smoke and odor are produced, which is not ideal; and some use of liquid separation is even less environmentally friendly. The special pulverizer crushes the aluminum-plastic material to a particle size below 1.5mm. Due to the large difference in the softening values of the two materials, such mixed particles are very suitable for separation by high-voltage electric separators. In addition, there is a dust removal device, which is dust-free and has high separation purity. The advantage of this production line is that the separated aluminum particles and plastic particles can be directly sold on the market, which is not achievable by other methods.

Equipment advantages:

1. High automation program, simple operation, stable performance;

2. Low power consumption, low noise, small footprint, and no dust pollution;

3. The electric separation efficiency reaches 99%, and the finished product can be directly put on the market.

Equipment features:

1. The aluminum-plastic plate separation equipment can completely separate aluminum and plastic, and achieve the purpose of comprehensive utilization, with high economic benefits. And there is no dust and no secondary pollution;

2. With a multi-machine combination structure, one-time feeding, multi-machine completion, equipped with automatic transportation, sound insulation technology, cooling system, etc., to achieve metal and plastic separation and recycling;

3. Low noise, large output, strong innovation and other characteristics. The aluminum recycled by the aluminum-plastic separator can maintain the original aluminum quality and recycle plastics, which can generate greater economic benefits;

4. The high-voltage electrostatic separation technology is adopted, and the metal recovery rate is higher, reaching more than 98%;

5. Three-in-one dust removal device, this dust removal device has three levels of dust removal: cyclone dust removal, bag dust removal and air purifier dust removal, which effectively solves the dust pollution problem.
