Radiator crushing and sorting

1.Machine Introduction

1) This production line involves coarse crushing, pulverizing, magnetic separation, air separation and sorting in one go, with reasonable connection;

2) Some models of waste radiator pulverizing and sorting adopt frequency conversion control to make the system equipment work in coordination and feed evenly;

3) Simple structure, reasonable layout; strong processing capacity, stable operation, strong and durable;

4) High degree of automation, mechanized production, effectively reducing the intensity of manual production, saving worry and effort;

5) The added value of the treated copper and aluminum water tank is increased, and copper, iron and aluminum are recycled in categories, effectively improving the quality of materials and increasing profit margins;

6) The dust removal rate of the pulse dust removal system reaches 99%, which effectively suppresses dust overflow, fully meets environmental protection requirements, and has no secondary pollution.

2.Core Process

1) Shredder feeding conveyor

Power: 3kw; Installation size: 3.6x1.1x2.5m; Weight: 0.8T

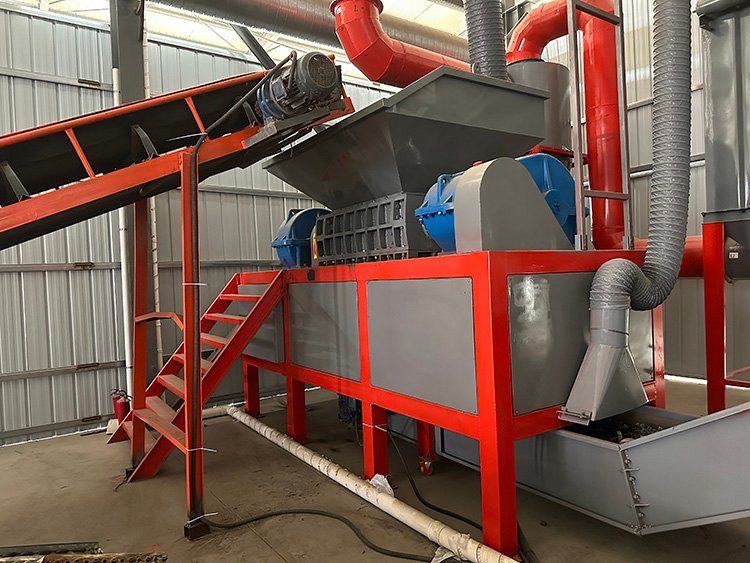

2 Heat sink shredder

Power: 74kw; Installation size: 4.2x1.75x2.2m; Weight: 7.5T

3) Crusher feeding conveyor

Power: 3kw; Installation size: 5.38x1.1x3.7m; Weight: 1.16T

4) Heat sink crusher

Power: 56.5kw; Installation size: 2.5x2x3.8m; Weight: 5.5T

5) Pulse dust removal and pipeline

Power: 12.54kw; Installation size: 17.5x5.8x4.1m; Weight: 1.5T

6) Air separation feeding conveyor

Power: 3kw; Installation size: 4.4x1.1x2.6m; Weight :0.9T

7) No. 1 magnetic separator

Power: 1.5kw: Installation size: 1.4x1.6x1.1m: Weight: 0.8T

8) Air separator

Power: 4kw: Installation size: 3.9x1.3x3.9m: Weight: 1.5

9) Gravity feeding conveyor

Power: 3kw: Installation size: 4.6x1.1x2.6m: Weight: 0.9T

10) Sorting platform conveyor

Power: 3kw; Installation size: 9x0.8x1.45m: Weight: 0.9T

11) No. 2 magnetic separator

Power: 1.1kw; Installation size: 1x0.85x0.3m: Weight: 0.2T

12) Gravity separator x2

Power: 29kw: Installation size: 9x4.8x6.9m: Weight: 2.5T

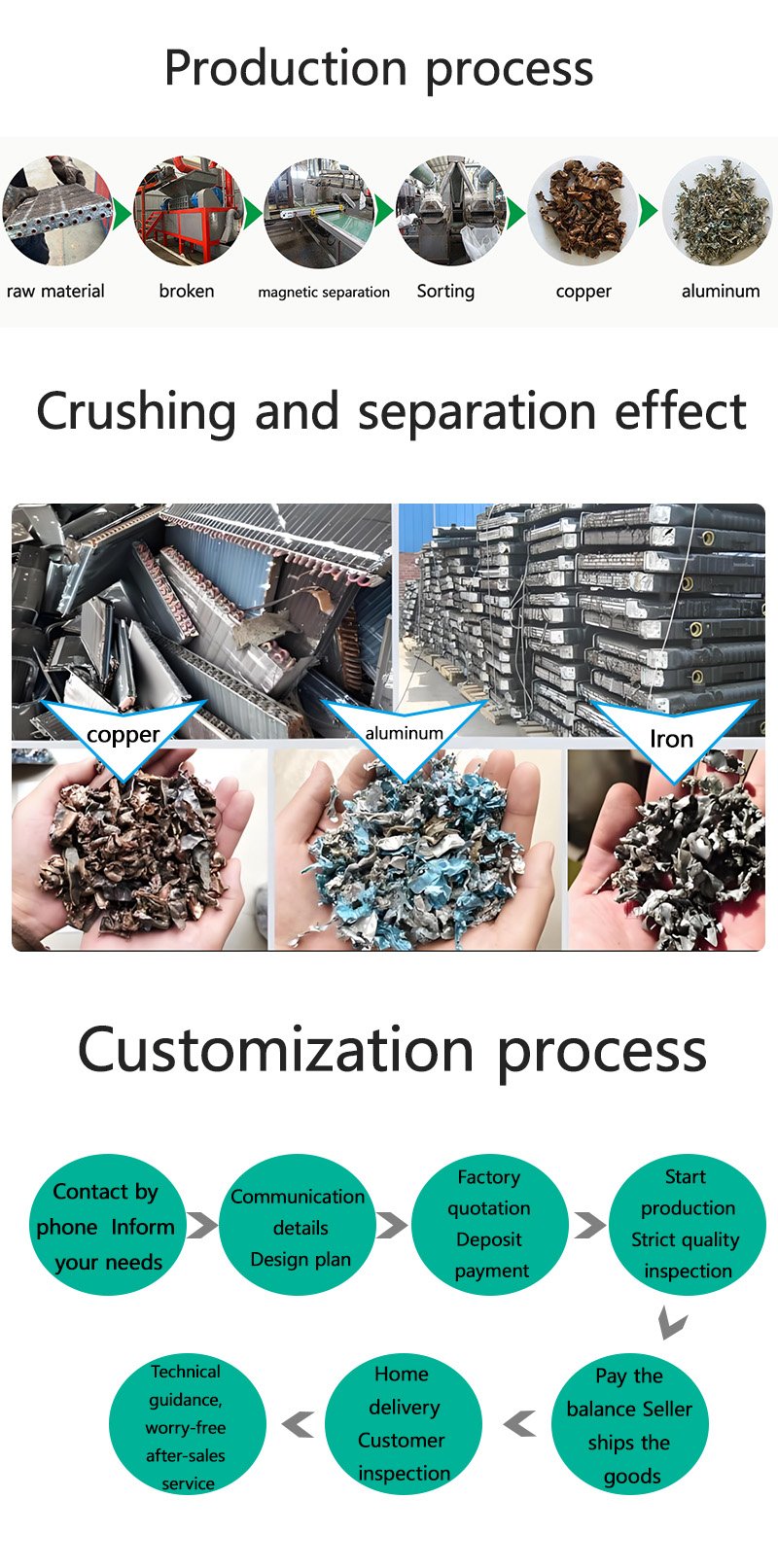

3.Applicable materials and sorting effects

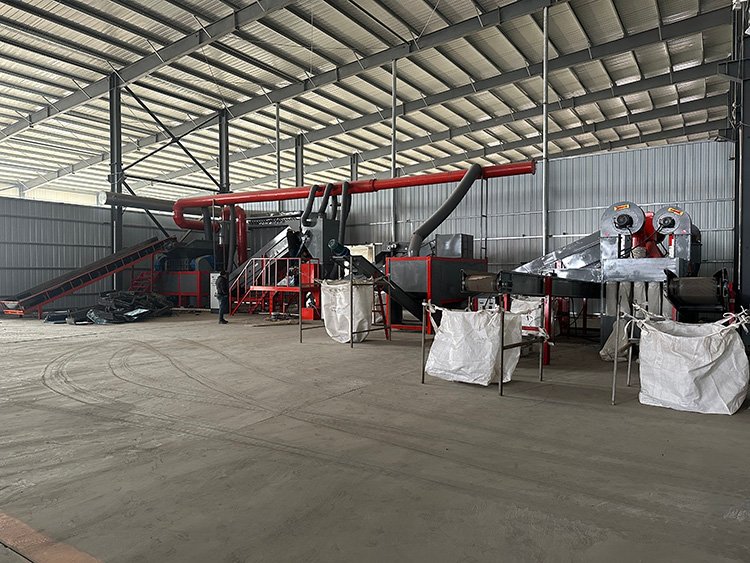

4.Customer CasesCustomer Cases
